| Component |
HP Part Number |

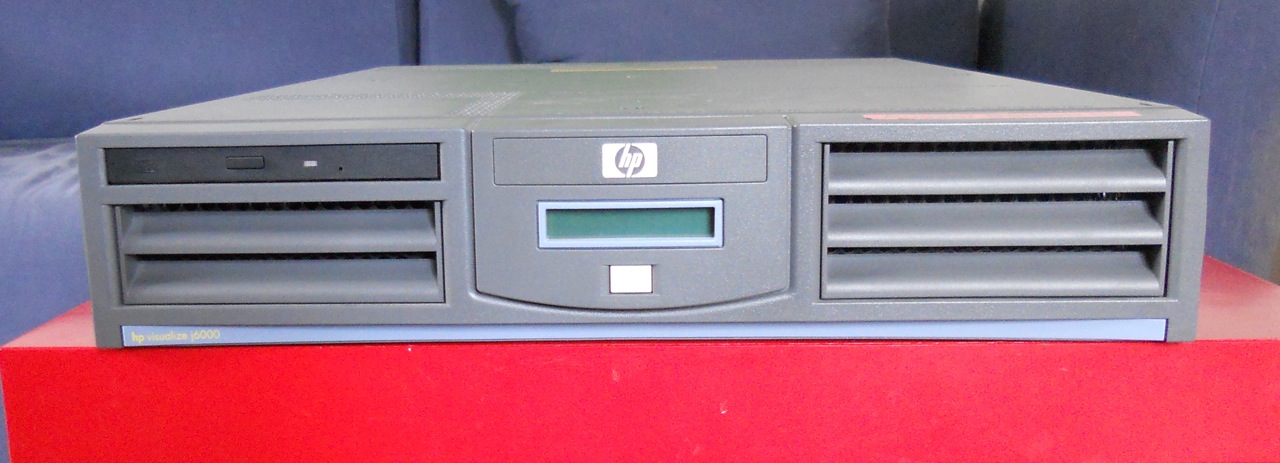

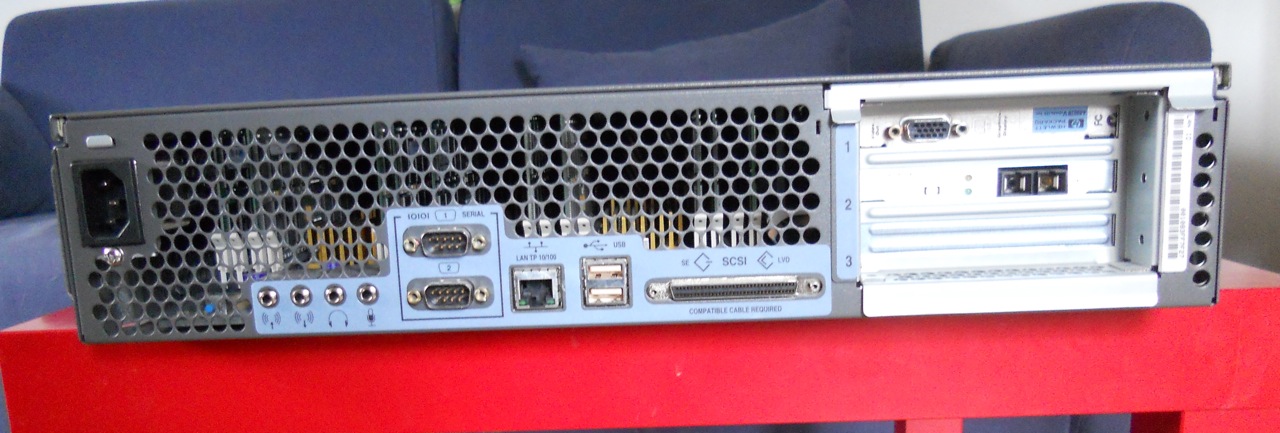

HP Visualize J6000 Server |
| Picture(s) |
|
|
| Benchmark Results |
|
Coming Soon |
| CPU(s) |
|
Dual HP PA-RISC PA-8600 552 MHz 64-Bit w/512K Instruction & 1MB Data Caches |

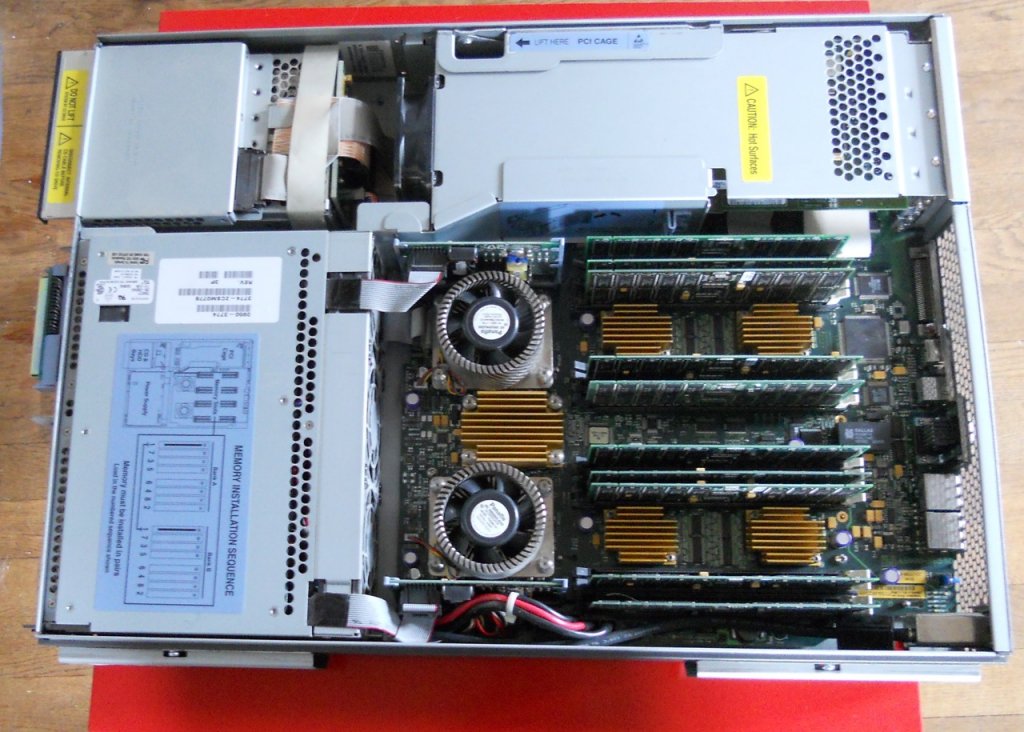

| Motherboard |
A5990-69010 |
HP Proprietary |
| MB Features |
|
HP Astro Chipset
16GB RAM Max (120 MHz ECC SDRAM)
3 PCI-X Slots |
| RAM Total |
|
4GB ECC SDRAM |
| RAM - First Modules |
A6016A |
2 x 1GB ECC SDRAM |
| RAM - Second Modules |
A4995A |
4 x 512MB ECC SDRAM |
| Controller(s) |
|
Integrated Symbios 53C896 Ultra-2 Wide LVD SCSI PCI |
| |
|
Integrated National 87415 IDE |
| Hard Drives |
A4998A |
2 x Seagate Cheetah ST318203LC 18LP 18GB Ultra-2 Wide LVD SCSI HDDs w/1MB Cache |
| ROM Drive(s) |
|
Toshiba/Samsung SD-C2732 Slimine 8x/24x IDE DVDROM/CDROM w/256K Cache |
| Primary Graphics Adapter |
A1262A |
HP Visualize fX5 PCI-X w/64MB DDR SDRAM |
| Network Card(s) |
|
Integrated DEC 21142/43 10/100 PCI |
| |

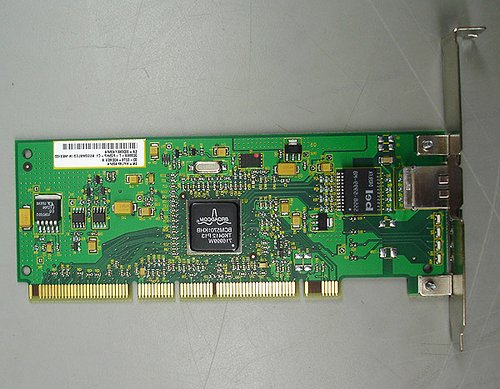

A6825A |
HP/Broadcom 10/100/1000 PCI-X |
| USB Adapter(s) |
|
Integrated USB 2.0 w/2 connectors |
| Monitor |
|
Dell 1704FPT 17" LCD 1280x1024 .264mm 12ms (shared w/other servers) |
| Sound card |
|
Integrated Analog Devices AD1889 PCI |
| Power Supply |
A5990-59101 |
HP 600W |
