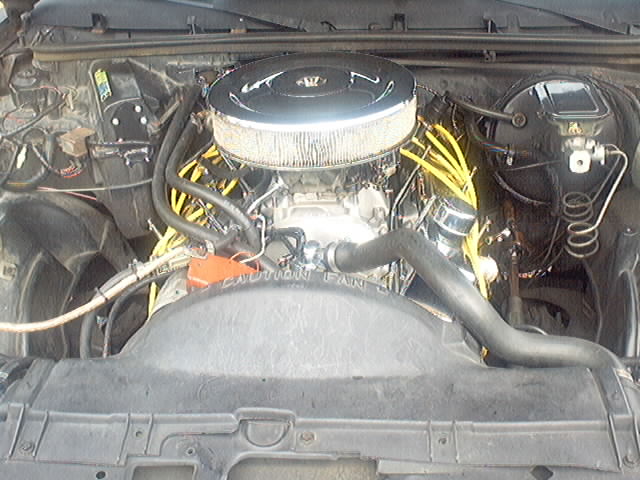

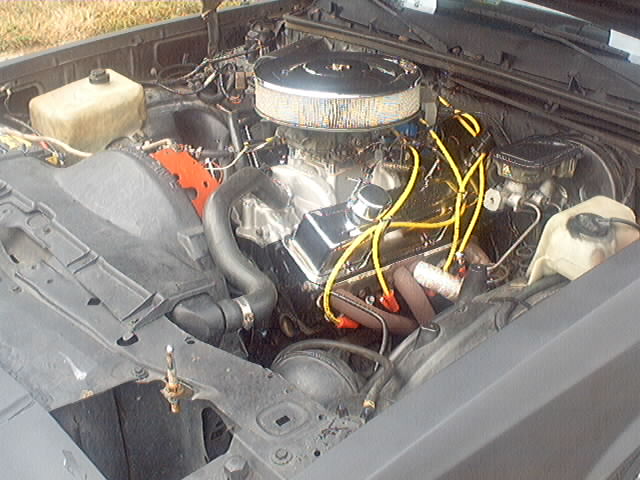

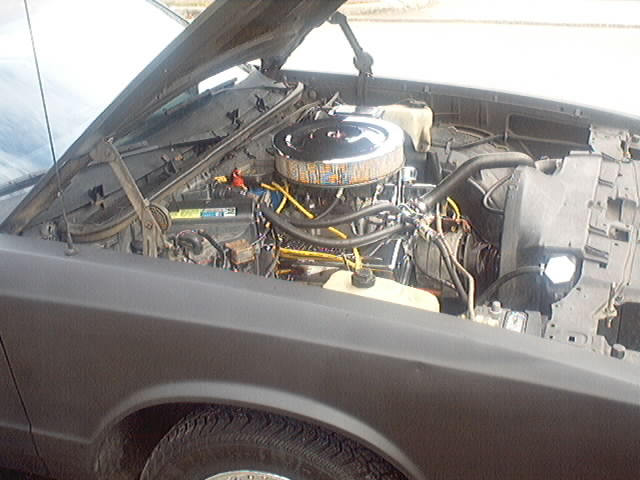

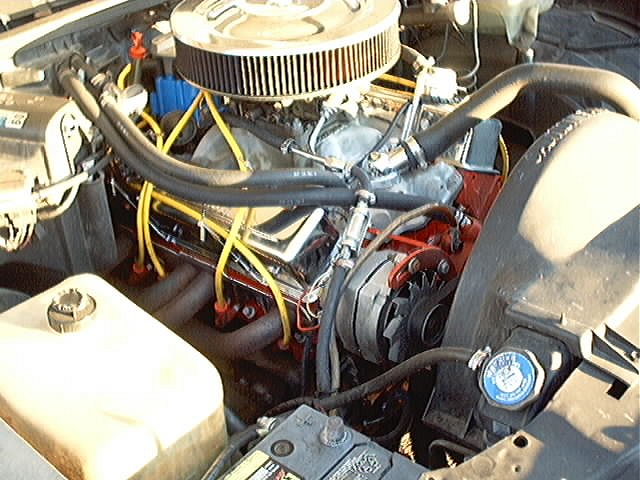

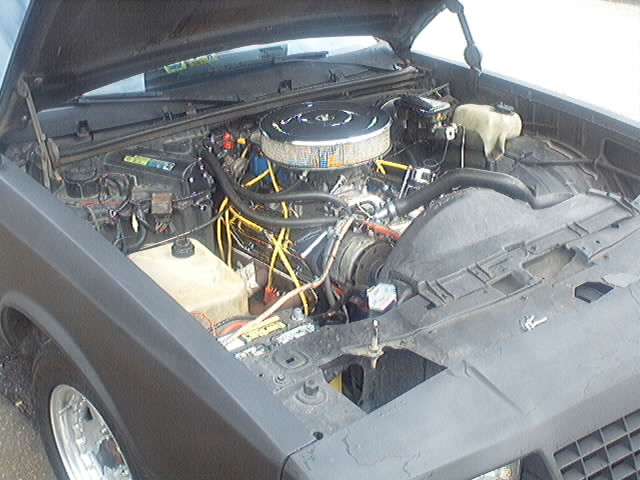

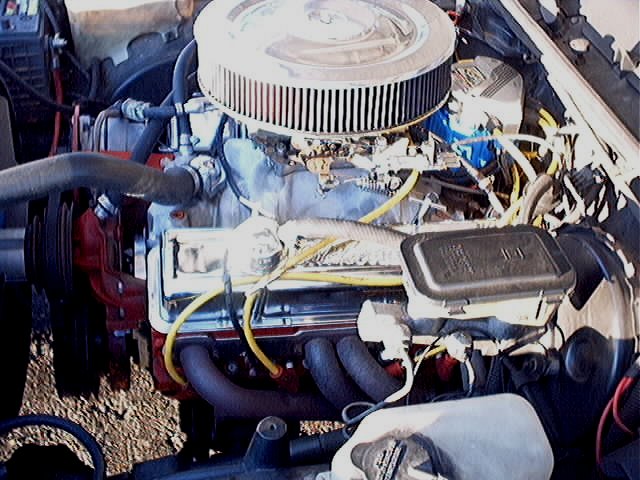

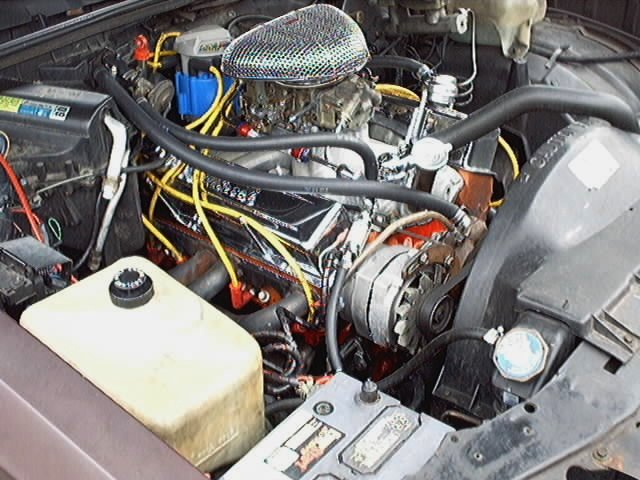

Engine Pictures (Prior to 2005)




  Part Description
  Block 385 CID (350 bored .040, 400 crank), Chevrolet part #3970014
  Crank Eagle 383 Stroker steel crank
  Pistons Keith Black fly-cut two-valve relief flat-top hypereutectic
  Connecting Rods Eagle SIR I-beam 5140 steel
  Oil Pump Stock high-volume
  Harmonic Balancer Stock 400
  Timing Chain Double-roller
  Camshaft Comp Cams (part no. 12-512-5; 280TLS-6), solid, .530 / .550 lift, 280/288 advertised duration, 250/259 duration @.050, 106 degree lobe separation, 3,000 - 6,500 RPM range
  Lifters Comp Cams solid (part no. 813-16)
  Pushrods Comp Cams 8740 forged steel
  Heads AFR 195 (part no. 1034), 70% CNC-machined, 2.02" / 1.60" valves, AFR double-coil springs (.550 lift max), 1.5-ratio full roller rocker arms
  Carburetor Holley Vacuum-secondary 750 CFM (part no. 0-3310-2), 1" stacker
  Intake Holley Street Dominator
  Exhaust headers, 1 3/4" primaries, 3 1/2" collectors, flowing to 3" reducers, then through true dual 2 1/2" exhaust through Flowmaster mufflers
  Fuel Pump Stock
  Water Pump Stock
  Alternator Stock-type, 94-amp
  Distributor Rebuilt HEI vacuum-advance, brass cap and rotor
  Coil Accel HEI Super Coil
  Spark Plug Wires Taylor 409 10.4mm Wires, 102,000 volt maximum current, 600 degree temperature resistance

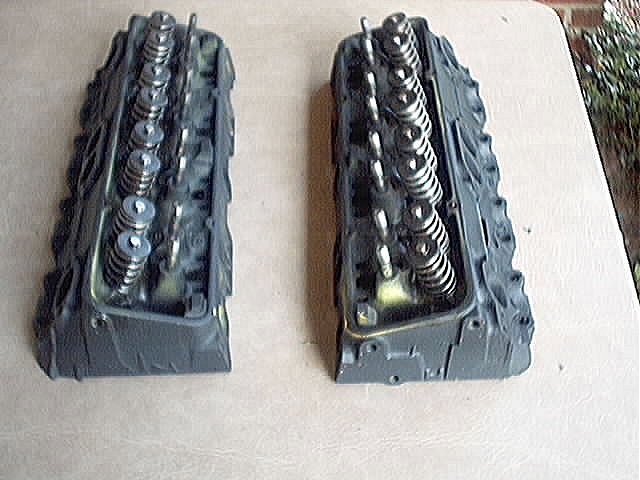

Stock 305 Ported Heads Pics




1st Engine Pics




2nd Engine Pics
