24GB RAM Max (DDR-266/333 SDRAM)
1 x16 PCIe, 1 x8 PCIe, 2 PCI-X, 2 PCI Slots
| Component | Third Server |
|---|---|
| Picture(s) |
|
| Benchmark Results | Coming Soon |
| CPU(s) | Dual Intel Pentium 4 3.6 GHz Xeons w/1MB L2 Cache (SL7PH) |
| CPU Type | Socket 604 |

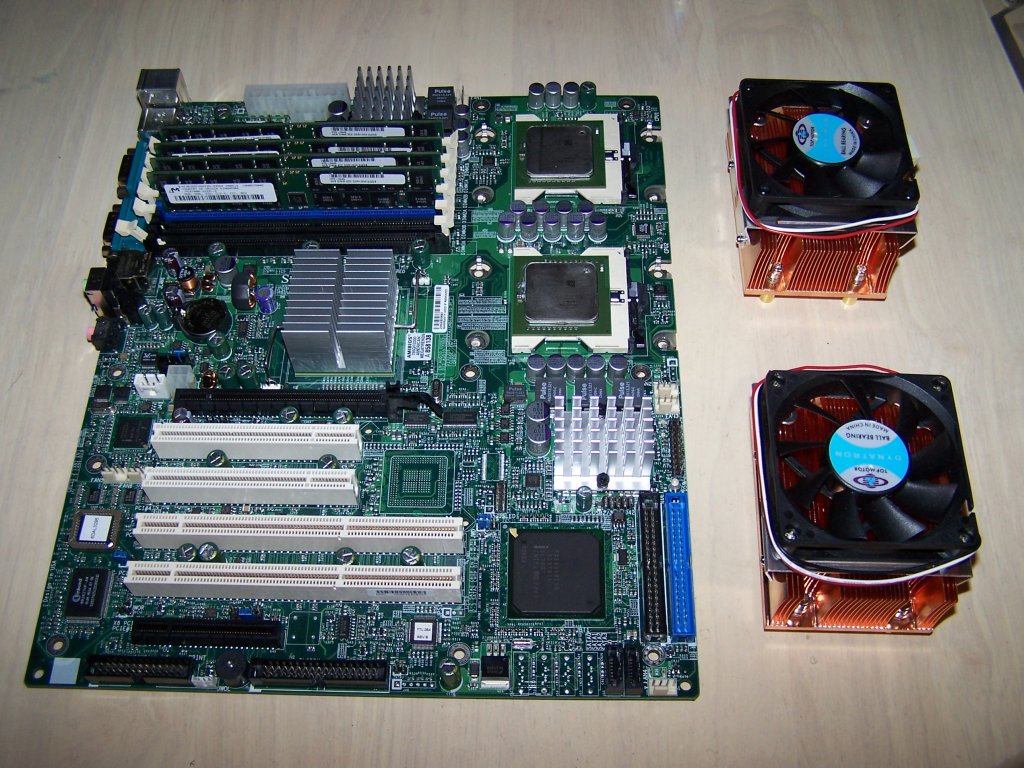

| Motherboard | Supermicro X6DAL-G |
| MB Features | Intel 7525 Chipset
24GB RAM Max (DDR-266/333 SDRAM) 1 x16 PCIe, 1 x8 PCIe, 2 PCI-X, 2 PCI Slots |
| RAM | 8GB DDR-333 ECC Registered SDRAM (Micron, MT36VDDF25672G-335D2, CL 2.5 CAS) |
| Controller(s) | Adaptec 39160 U160 LVD SCSI PCI-X |
| 3Ware 9500S-4LP SATA PCI-X w/128MB PC133 SDRAM | |
| Built-In Intel ICH5 SATA-150 | |
| Built-In Intel ICH5 ATA-100 | |
| Hard Drives | 1 x Western Digital Caviar SE16 250GB SATA-300 HDD w/16MB Cache |
| 1 x Hitachi Deskstar HD31000 IDK/7K 1TB SATA-II HDD w/32MB Cache (Backups) | |
| ROM Drive(s) | HP 1260i 12x/12x/8x/24x/12x/16x DVD+R DL/DVD-R DL/DVD+RW/DVD+R/DVDRAM/DVDROM / 48x/32x/48x CD-R/CD-RW/CDROM SATA Burner w/2MB cache |
| Media | 3.5" 1.44MB Floppy |
| Tape Drive | Sony SDX-500C 50/130GB AIT-2 Ultra2 Wide LVD SCSI w/10MB Cache |
| Primary Graphics Adapter | ATI FireGL v5100 x16 PCIe w/128MB DDR SDRAM |
| Network Card(s) | Integrated Intel Pro-1000 MT Gigabit PCI-X |
| USB Adapter(s) | Integrated USB 2.0 w/4 connectors |
| Monitor | Dell 1704FPT 17" LCD 1280x1024 .264mm 12ms (shared w/other servers) |
| Sound card | Integrated Realtek ALC650 PCI |
| Pointing Device | Logitech Trackman Wheel Optical (shared w/other servers) |
| Power Supply | BFG BFGR550WGXPSU 550W |
| UPS | Geek Squad 875VA |
