File Server Setup


Component File Server

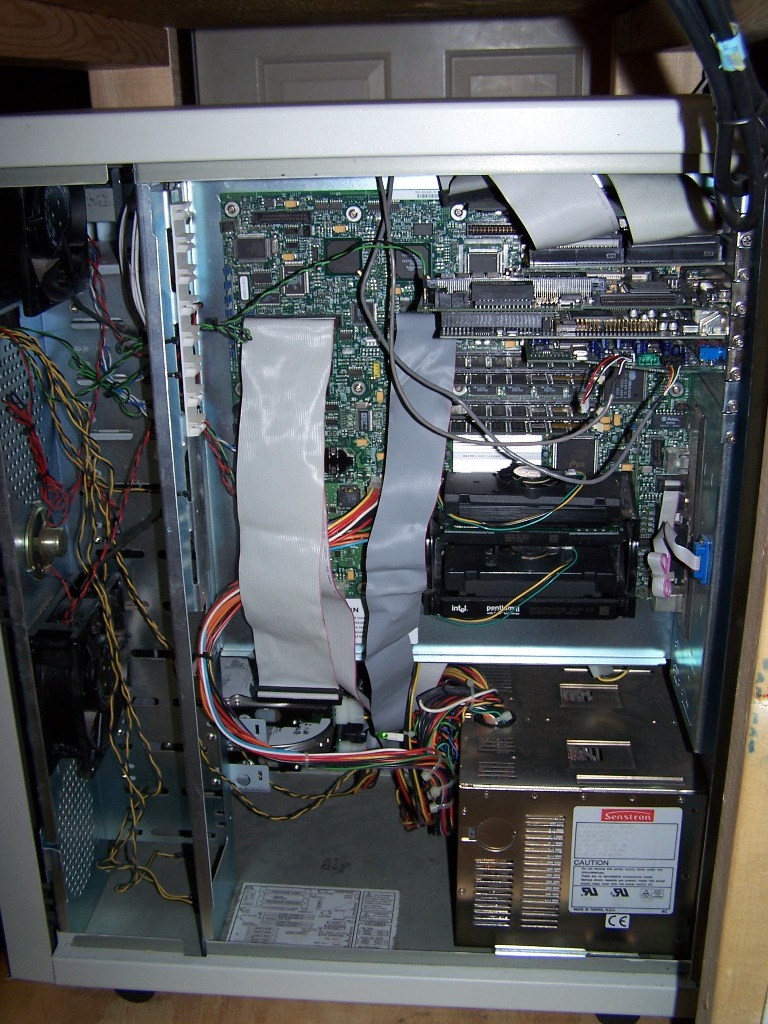

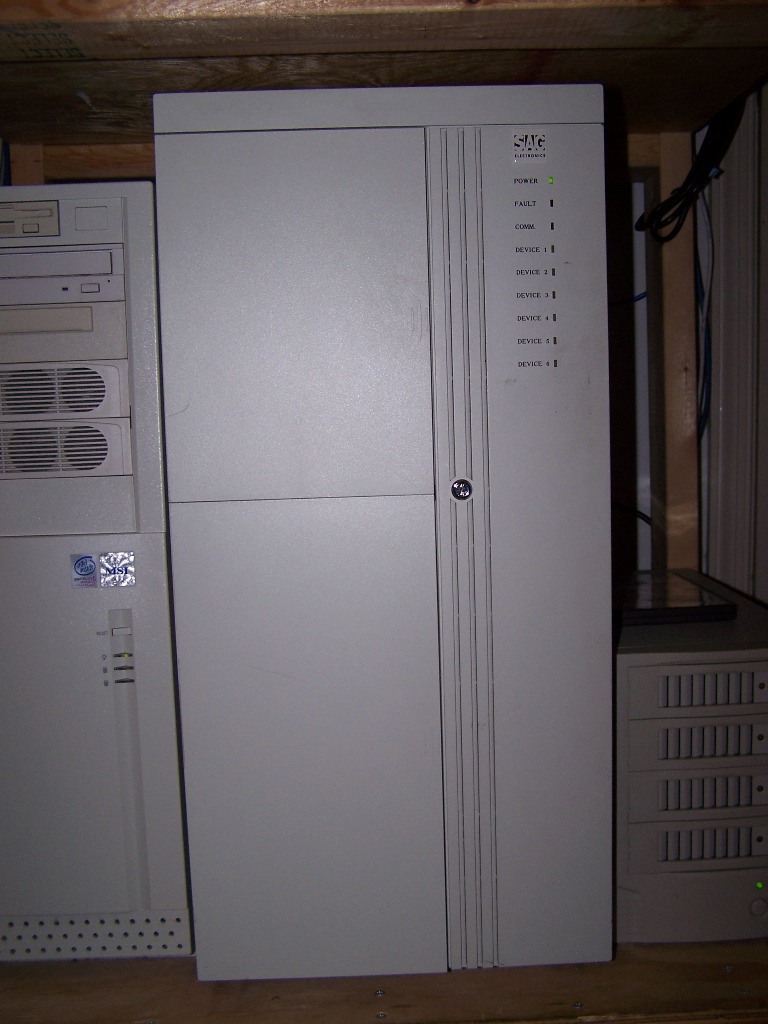

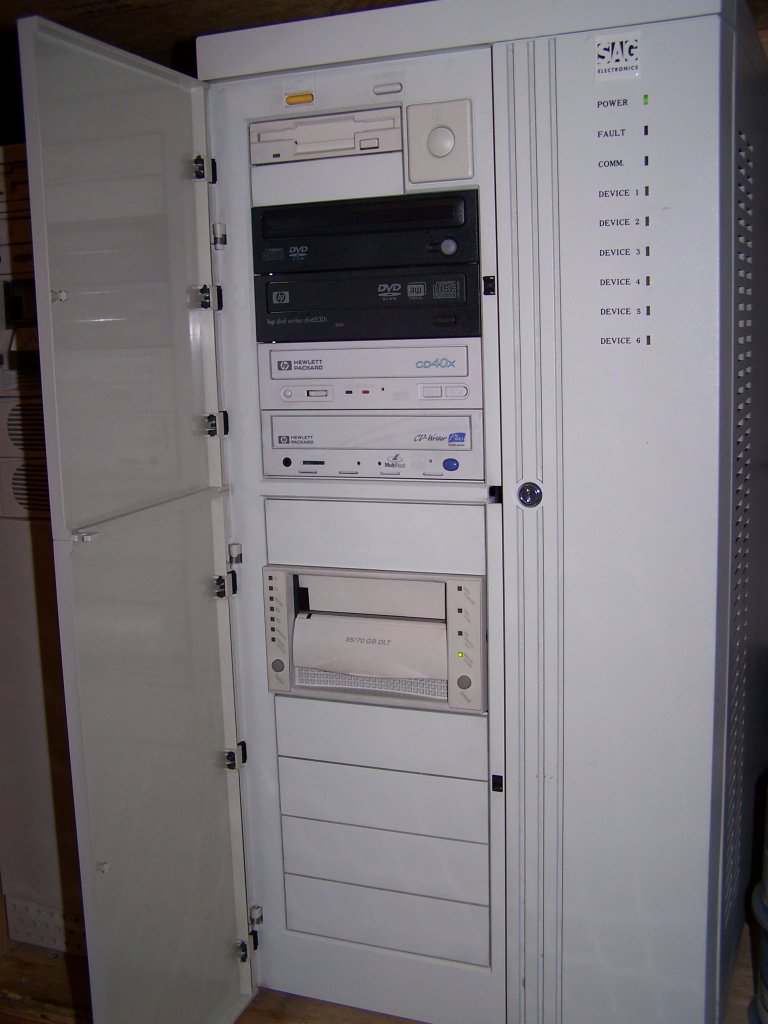

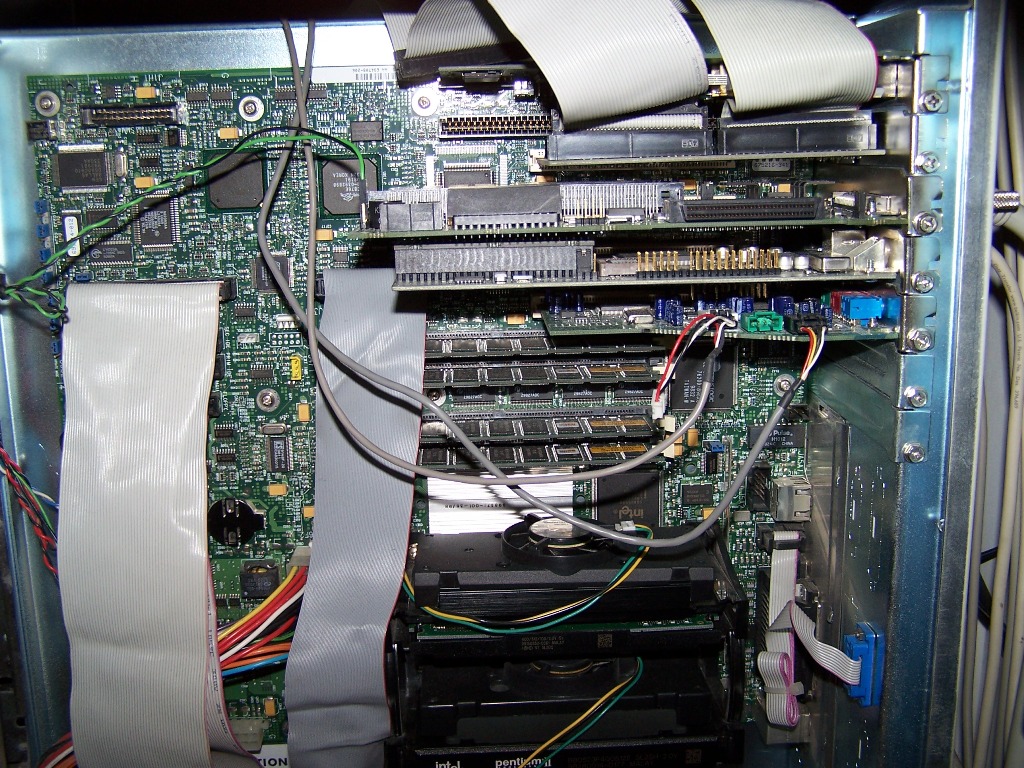

Picture(s)
Benchmark Results Wintune Results for Secondary Server
CPU(s) Dual Intel Pentium III 500s w/512K L2 Cache
CPU Type Slot I
Motherboard Intel N440BX
MB Features Intel 440BX Chipset

1GB RAM Max (PC-100 SDRAM, ECC SDRAM)

3 PCI, 1 PCI/ISA, 1 ISA Slots
RAM 512MB PC100 ECC SDRAM
Controller(s) Built-in Symbios 53C876E Ultra-2 Wide SCSI PCI
  AMI MegaRAID Elite 1600 (493) U160 LVD SCSI PCI-X w/128MB SDRAM
  ITE ATA-133 PCI
  Built-In Intel PIIX4 ATA-33
Hard Drives 2 x Quantum Atlask 10K II 36GB Ultra-160 LVD SCSI HDDs w/8MB Cache
  4 x Seagate Cheetah ST173404LCV 73GB Ultra-160 LVD SCSI HDDs w/16MB Cache (RAID 5)
ROM Drive(s) HP / Plextor CD40X 40x Ultra SCSI-2 CDROM w/512K Cache
  HP 9200i 8x4x32x SCSI-2 CDRW w/4MB Cache
  Samsung / Toshiba SD-616E 16x/48x ATAPI DVDROM/CDROM w/512K Cache
  HP DVD530i 2.4x/8x/4x/12x Dual-Layer DVD+RW/DVD-RW / 40x/24x/40x CDRW ATAPI Burner w/2MB cache
Media 3.5" 1.44MB Floppy
Tape Drive Compaq DLT7000 TH6AE-HT 242853-B21 35/70GB DLTIV Ultra-2 Wide LVD SCSI w/8MB cache
Primary Graphics Adapter ATI 3D Pro Turbo PC2TV PCI w/8MB SGRAM
Network Card(s) Integrated Intel 82558B 10/100 PCI
Monitor Proview MT7ANK 17" LCD 1280x1024 .294mm 8ms (shared with main server)
Sound card Sound Blaster AWE64 ISA
Pointing Device IBM Optical Scroll Mouse (shared with main server)
UPS APC Back-UPS Pro 1100
